Oldtimerteile.net
Spare parts for BMW Isetta, 600 & 700
Product group: BMW 600 - Electric Equipment
| SKU BMW-No. |
Image | Product name Product description |
Price |
|---|---|---|---|
| B6-07-075
62127061526 |
|
Spare wheel cover *** Sale Items *** replica, made from polyester, with mounting help; mounting material must be tailored by customer to the specific car.
B6-08-07610
|
199.90 € per piece |
| B6-08-0001
12418002528 |
|
Carbon brush 4 single pieces, 40mm, inventory-managed under 7-009 |
23.50 € per set |
| B6-08-00010
12118002584 |
|
lubrication felt original with holes, to rivet on the bearing, inventory-managed under 7-0083 |
4.90 € per piece |
| B6-08-00011
12418002528 |
|
Carbon brush 4 single pieces, length 40/110mm, inventory-managed under 7-0090 |
13.90 € per set |
| B6-08-00012
12118002584 |
|
Lubrication felt complete, inventory-managed under 7-0083 |
6.50 € per piece |
| B6-08-0002
12418002532 |
|
Spiral spring for carbon brush, inventory-managed under 7-010 |
4.90 € per piece |
| B6-08-0006
07119951430 |
|
Woodruff key for fan wheel and centrifugal governor, at starter armature, inventory-managed under 7-0062 |
0.90 € per piece |
| B6-08-0007
12318030106 |
More pictures |
Condenser Bosch only, no no-name product, also B7-18-024, inventory management under 7-025 |
9.90 € per piece |
| B6-08-0008
12318003516 |
|
Connecting plate with fastening bolt, also B7-18-037, inventory-managed under B6-08-0065 |
14.49 € per piece |
| B6-08-0009
12318030558 |
More pictures |
Condensor clamp also B7-18-025, inventory-managed under 7-027 |
4.40 € per piece |
| B6-08-001
12318003739 |
|
Motor generator complete, without rotor. This is a replacement item of make Bosch. Motor generator reconditioned by professional garage due to long storage time. All functions tested according to producer's standard. Only available with item B6-08-0015. Suitable also for BMW 700, B7-18-004 |
349.50 € per piece |
| B6-08-00100
12318003739 |
More pictures |
Stator for Dynastar, expertly reconditioned without Rotor, with new brushes and new Bosch breaker contacts. All cables and wires were replaced as necessary. The collector of the rotor was turned off when needed, trimmed and then the system was tested statically and dynamically, for 100% functionality. also fit for BMW 700 B7-18-00400 |
349.00 € per piece |
| B6-08-0014
12318030106 |
|
Condenser Bosch, no no-name product, ready-mounted without cable see also 7-025 |
7.80 € per piece |
| B6-08-0015
12318003500 |
|
Amature for motor generator.It is a replacement article of make Bosch. Because of the long storage time, the amature is checked in a professional garage. The collector is dressed to size and checked static and dynamic with the standard of the producer. also suitable for BMW 700, B7-18-001 |
300.00 € per piece |
| B6-08-001500
12318003500 |
|
Amature for motor generator. without stator. It is a used part original Bosch. The amature has been checked in a professional garage. The collector is dressed to size, static and dynamic have been checked upon the manufacturer's standards. Only available with part B6-08-00150 Also suitable for BMW 700, B7-18-001 |
300.00 € per piece |
| B6-08-0016
|
Field coil set for Motor Generator, BMW 600 + BMW 700 |
180.00 € per piece |
|
| B6-08-0017
|
|
Light coil for motor generator |
39.90 € per piece |
| B6-08-00170
|
|

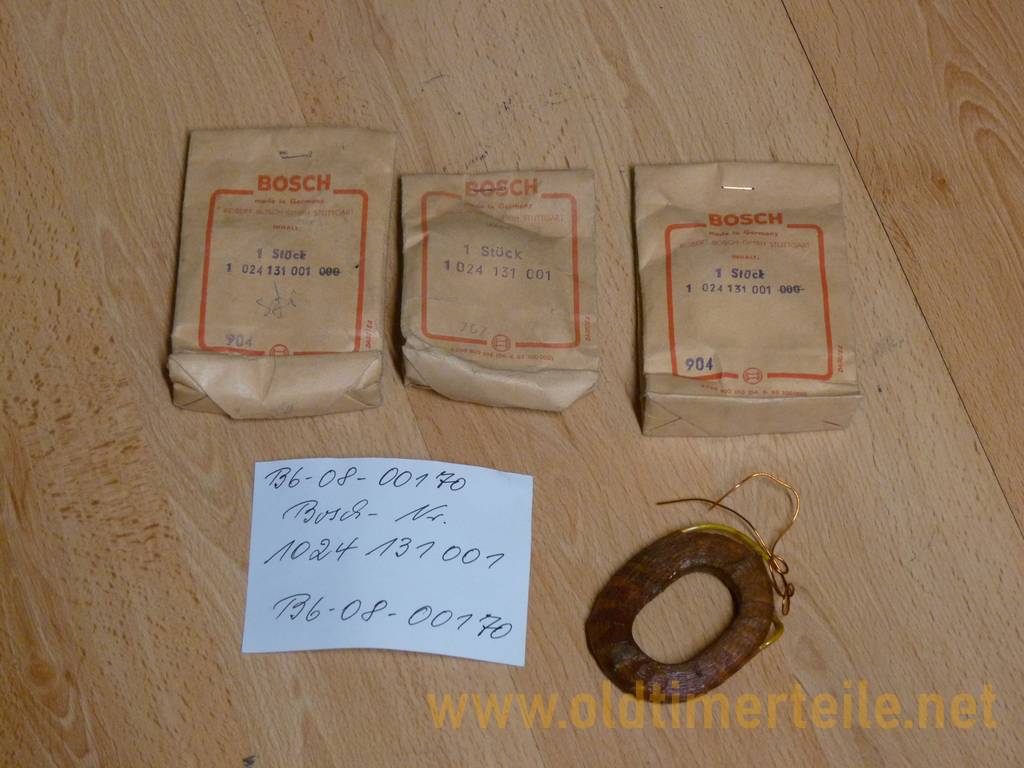

Light winding for motor generator Bosch.-Nr.: 1024131001 or AZWC11Z18Z |
39.90 € per piece |
| B6-08-00171
|
|
Light winding for motor generator, Bosch.-Nr.: 1024131002 oder AZWC11Z19Z |
39.90 € per piece |
| B6-08-00173
|
|

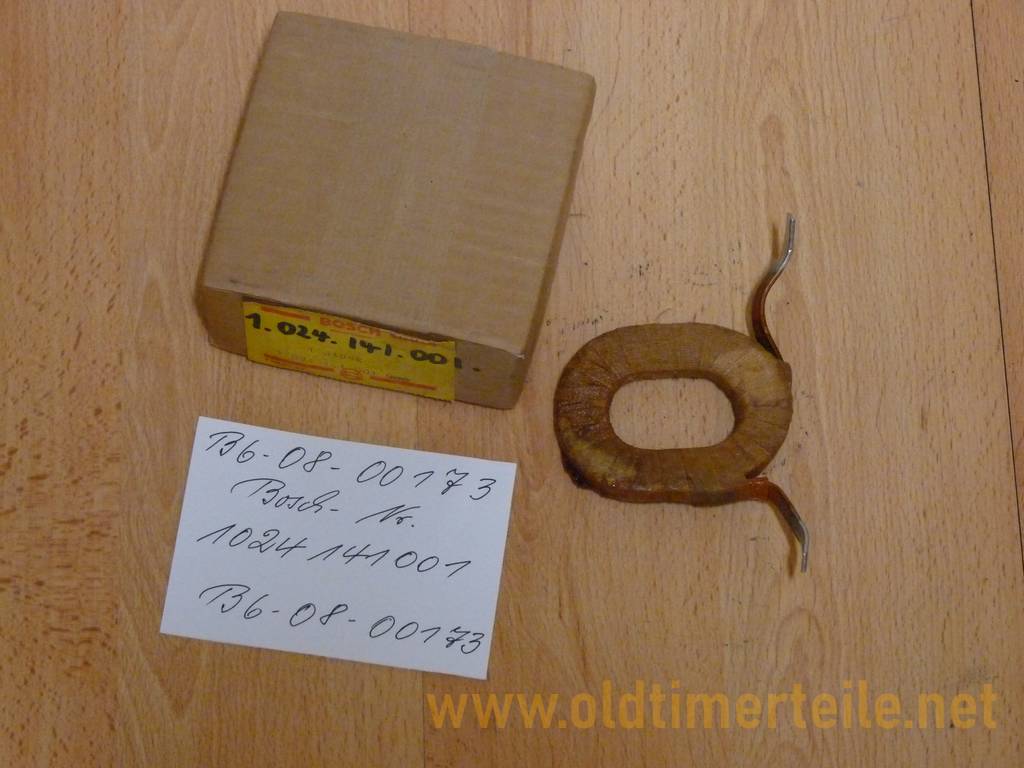

Starting winding for motor generator, Bosch.-Nr.: 1024141001 or AZWC11Z21Z |
39.90 € per piece |
| B6-08-00174
|
|
Starting winding for motor generator, Bosch.-Nr.: 1024141002 or AZWC11Z22Z |
39.90 € per piece |
| B6-08-00175
|
|
Starting winding Bosch 1024141003 für Dynastartanlage Bosch.-Nr. 1024141003 |
39.90 € per piece |
| B6-08-00177
|
|

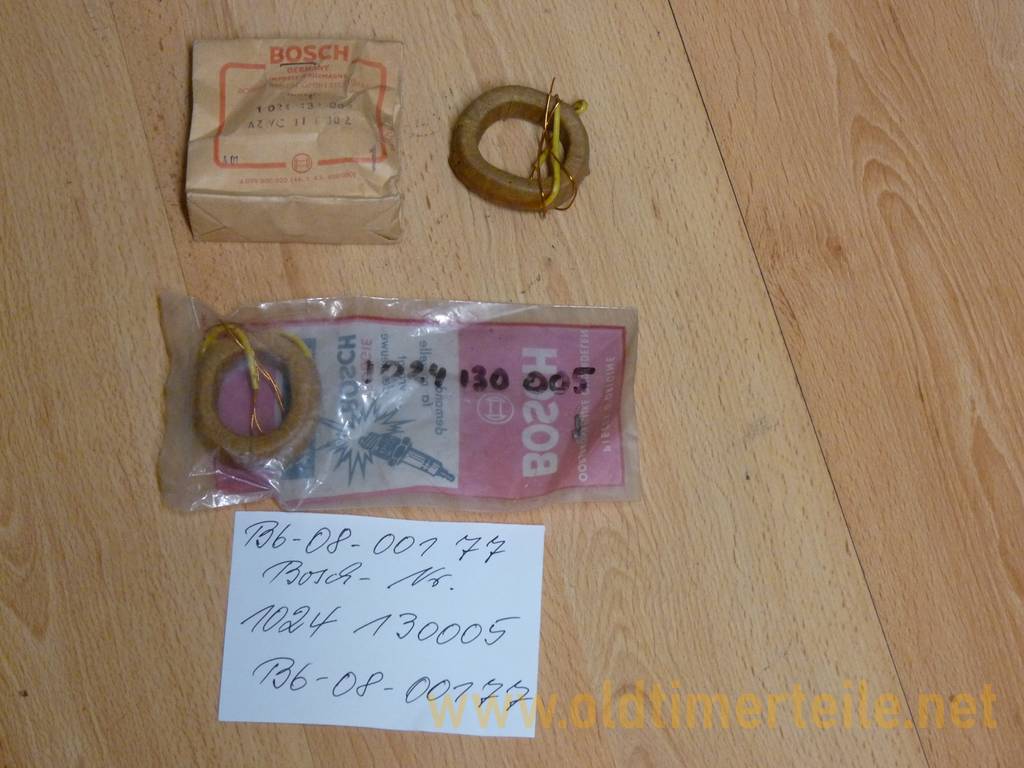

Starting winding Bosch 1024130005 für Dynastartanlage Bosch.-Nr. 1024130005 |
25.00 € per piece |
| B6-08-00178
|
|
Starting winding Bosch 1024130006 für Dynastartanlage Bosch.-Nr. 1024130006 |
39.90 € per piece |
| B6-08-00179
|
|
Starting winding Bosch 1024131005 für Dynastartanlage Bosch.-Nr. 1024131005 |
39.90 € per piece |
Printable view
You can print our complete product list if you like. Please note that the printout may become quite long – depending on the product group.
Documents attached to this product group
The attached documents (exploded drawings, mounting guidelines, etc.) give you assistance for the usage of parts or some extra tips for special products:
